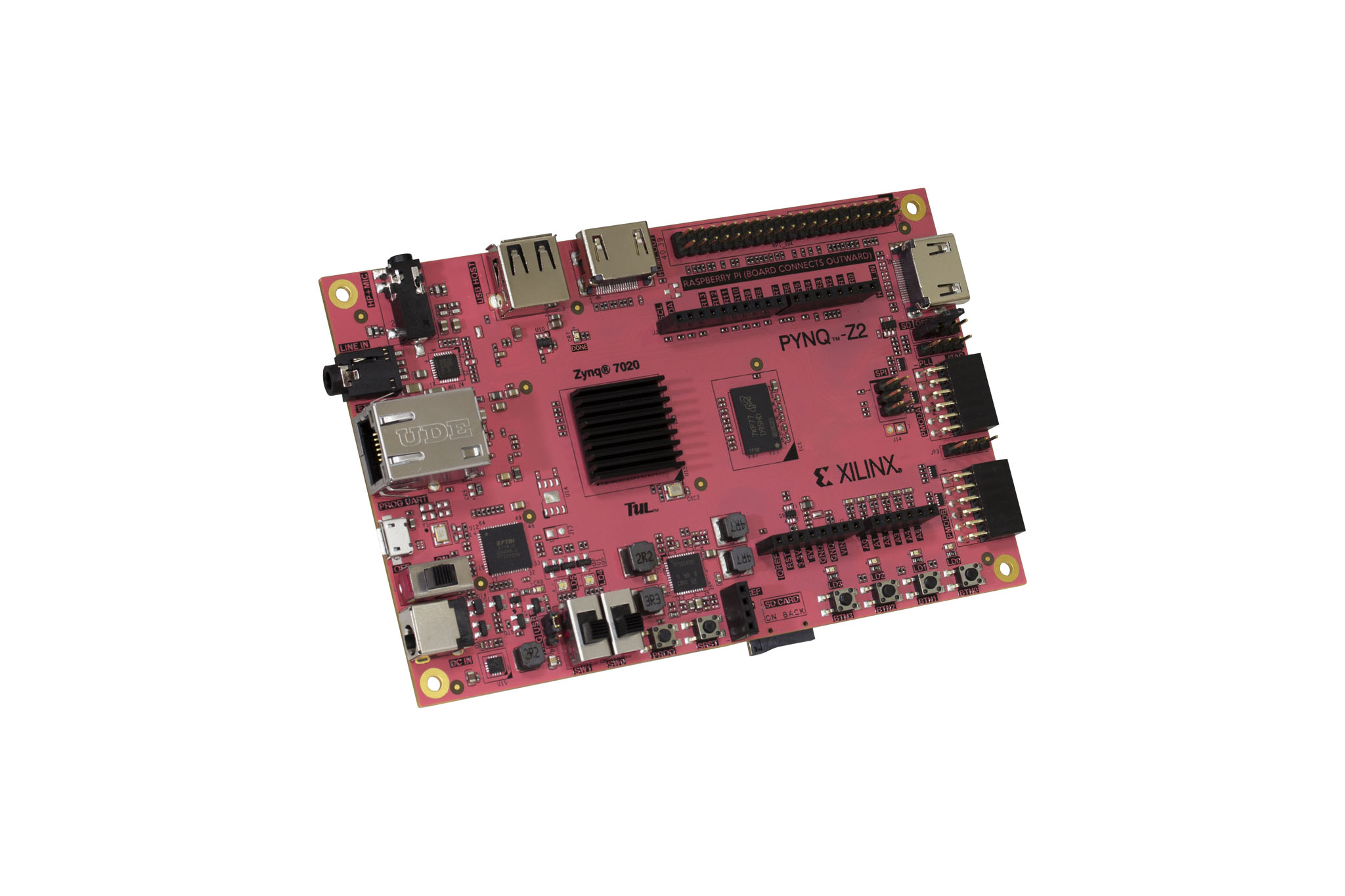

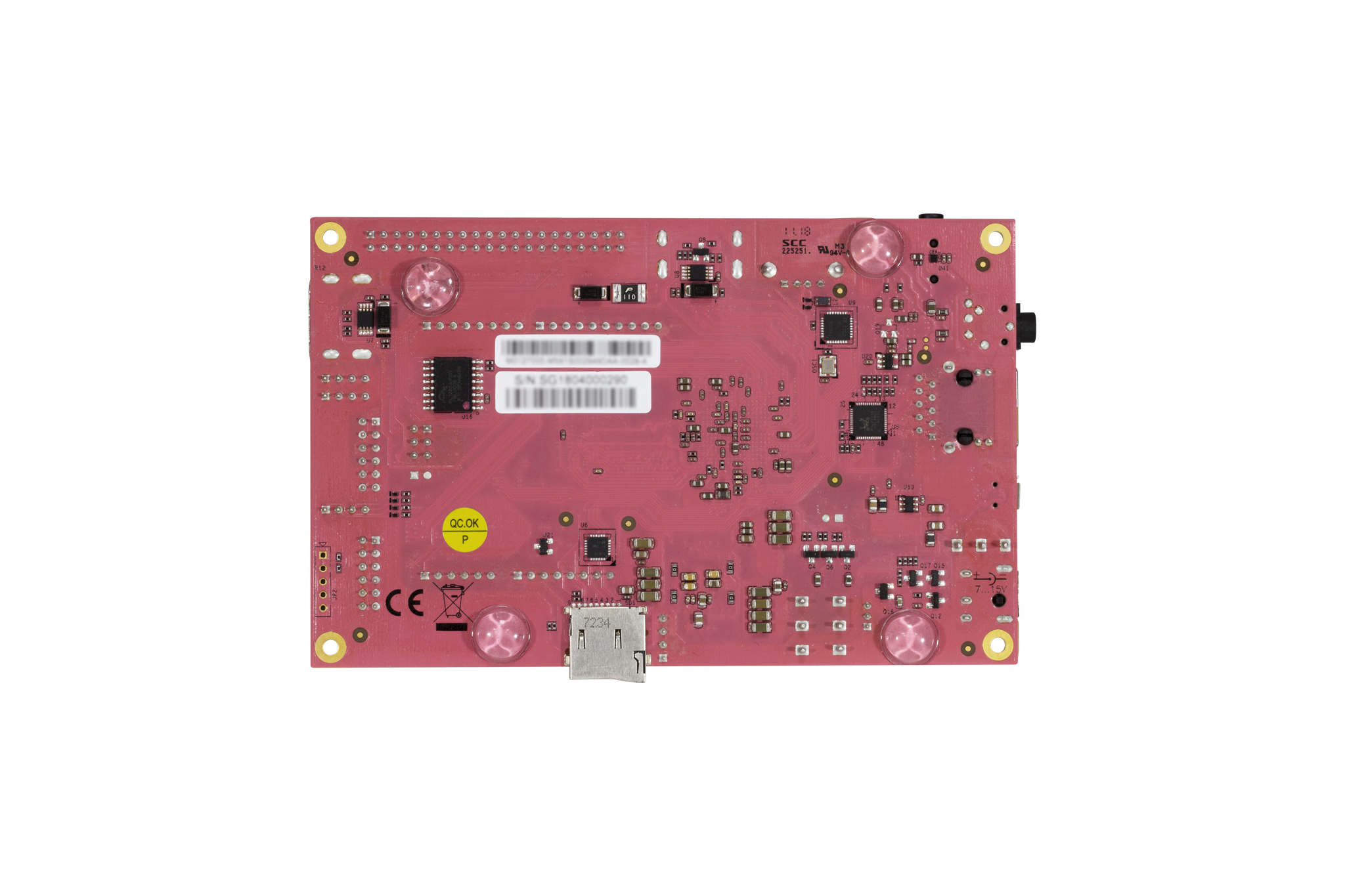

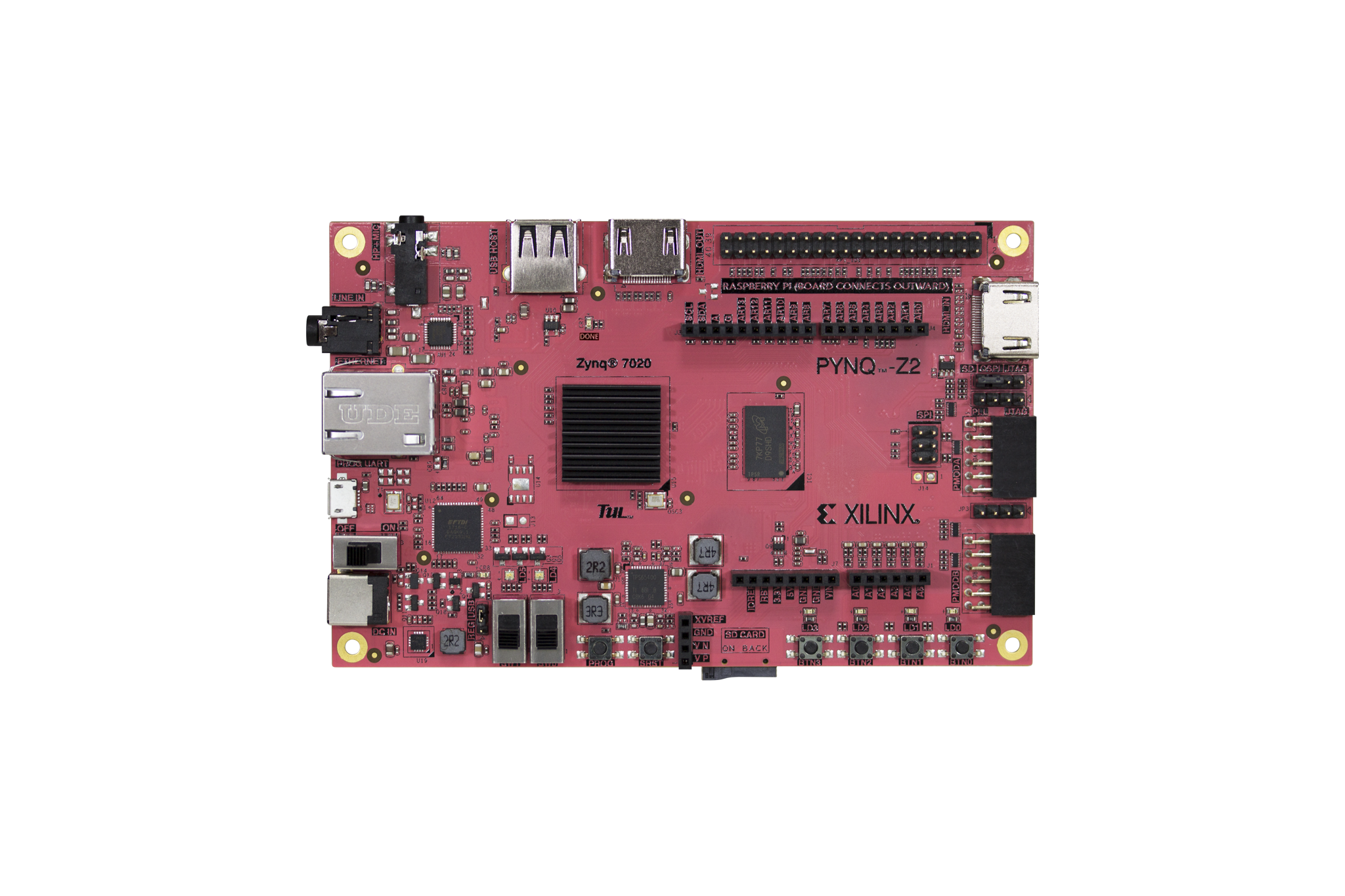

TUL PYNQ-Z2
FEATURES
- Xilinx SoC
- 650MHz Dual-Core Cortex-A9 Processor
- 512MB DDR3 / 128Mbit FLASH
DOWNLOAD
PYNQ is an open-source AMD project that lowers the barrier to working with AMD adaptive computing platforms. By combining Python, Jupyter notebooks, and the broader Python ecosystem, it lets designers combine the performance of programmable logic with the flexibility of microprocessors to create more capable electronic systems.
Product Specifications
-
FPGA
-
- Zynq-7000 SoC XC7Z020-1CLG400C
-
I/O Interfaces
-
- USB-JTAG Programming circuitry
- USB OTG 2.0
- USB-UART bridge
- One 10/100/1G Ethernet
- HDMI Input
- HDMI Output
- I2S interface with 24bit DAC with 3.5mm TRRS jack
- Line-in with 3.5mm jack
-
Memory
-
- 512 Mbyte DDR3 with 16-bit bus @ 1050 Mbps
- 128 Mbit Quad-SPI Flash
- Micro SD card connector
-
Switches and LEDs
-
- 2 Slide switches
- 2 RGB LEDs
- 4 LEDs
- 4 Push-buttons
-
Clocks
-
- One 125 MHz for PL
- One 50 MHz for PS
-
Expansion ports
-
- 2 Pmod ports
- 16 Total FPGA I/O (8 shared pins with Raspberry Pi connector)
- 1 Arduino Shield connector
- 24 Total FPGA I/O
- 6 Single-ended 0-3.3V Analog inputs to XADC
- Raspberry Pi connector
- 28 Total FPGA I/O (8 shared pins with Pmod A port)
- 2 Pmod ports
-
Power Monitoring
-
- Active monitoring of power supply currents and voltage
